TanDEM-X answers its first call for crisis assistance

Radar imaging is a well-established tool for distinguishing smooth surfaces, which appear dark in radar data, from the rougher, brighter surroundings. This characteristic of radar can be used to detect an area flooded with calm water or to identify oil spills – where the water surface is flat, in contrast to the wind-induced ripples on the unpolluted sea surface. However, apart from calm water, fields or streets may also appear dark in radar images. To add to the confusion, water can also appear very bright if strong currents agitate the surface. Accurate mapping of flooded areas therefore requires a lot of expertise and pre-disaster data from the archives for comparison. But there are additional techniques to support this task, which are now possible with TanDEM-X.

When the twin satellites TerraSAR-X and TanDEM-X fly over the same area within three seconds of one another, they 'see' nearly the same radar reflections from the ground, although not quite. Normally, only the terrain variations lead to small differences. These can be processed interferometrically to derive digital elevation models (DEMs). But even in these three seconds, some things change for the sensitive radar signals – these signals have a wavelength of only three centimetres. In particular, the radar backscatter from water surfaces or leaves moving in the wind show significant differences on these small scales. This effect leads to phase noise in the interferograms, referred to as incoherence. The two satellites simply don’t see the same image.

Within two months, when the two satellites reach their close formation, these differences will largely disappear. What is now a sometimes-annoying disturbance for DEM generation nevertheless carries a large amount of information on the scene. The degree of coherence between the two images directly reveals where the land is not completely covered by water since enough signals are being reflected from objects like rocks, buildings or trees to maintain coherence.

Although TanDEM-X is not fully calibrated yet and its commissioning phase is packed with tests and experiments, the idea to use TanDEM-X to help during this crisis was seized by the commissioning team immediately and put into action. The TanDEM-X formation was used to supplement one of ZKI's planned TerraSAR-X acquisitions over Pakistan with a TanDEM-X acquisition and the data was processed interferometrically.

Links die Bildhelligkeitsstatistik, in der Mitte die interferometrische Phase und rechts die inkohärenten Gebiete in Blau markiert. Bild: DLR
Links die Bildhelligkeitsstatistik, in der Mitte die interferometrische Phase und rechts die inkohärenten Gebiete in Blau markiert. Bild: DLR

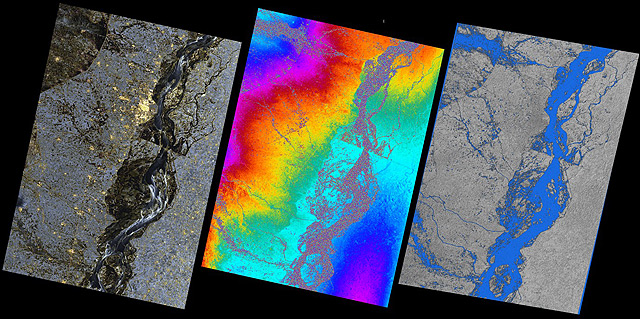

Left: image brightness data. Centre: interferometric phase. Right: incoherent areas marked in blue. Credit: DLR.

The images show a segment from a longer stripmap data acquisition, with the city of Dera Ismail Khan visible as a bright spot beside the river. The radar brightness data image, where the built-up areas are clearly visible contrasting with the large dark areas, is shown on the left. Strong river currents also appear bright in this image. The image in the centre shows the interferometric phase difference between TanDEM-X and TerraSAR-X – incoherent areas are noisy. These areas are coloured blue in the image to the right, indicating possibly flooded areas. There is a significant discrepancy in the top left region, where dark areas surround the cities. Nevertheless, this region is obviously not completely flooded, since there is coherence in this area. The magnified view of this region below shows that some fields are partly above water level.

The interferometric TanDEM-X data were provided to the ZKI for mapping support within hours. The TanDEM-X team hopes that this kind of crisis assistance will not be needed often – but, if required, the team and the technique are ready.

Ein Ausschnitt aus der TanDEM-X Aufnahme mit inkohärenten, wahrscheinlich überfluteten, Gebieten schwarz markiert. Bild: DLR.
Ein Ausschnitt aus der TanDEM-X Aufnahme mit inkohärenten, wahrscheinlich überfluteten, Gebieten schwarz markiert. Bild: DLR.

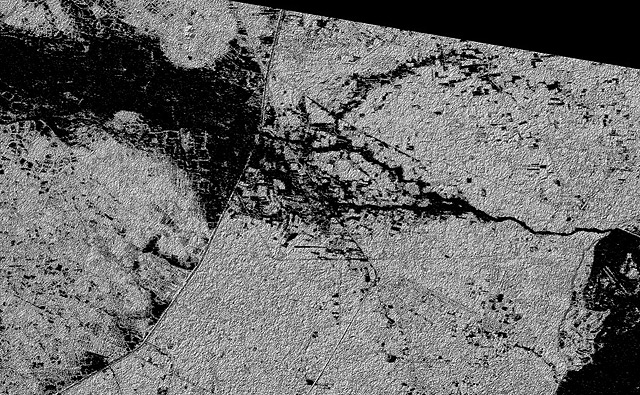

A magnified extract from the TanDEM-X data with incoherent, possibly flooded land, shown in black. Credit: DLR.
