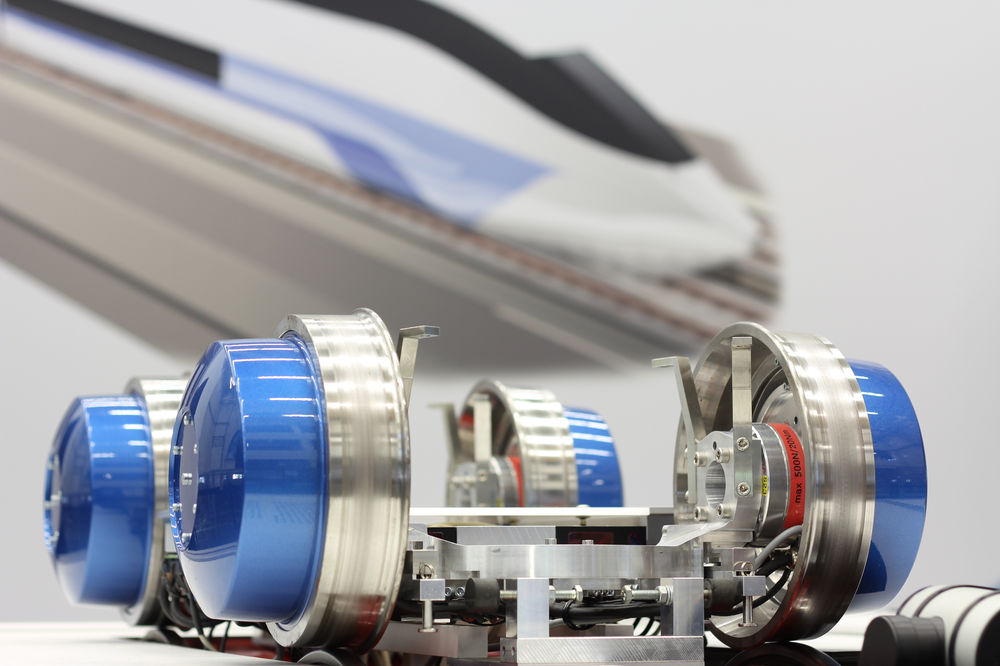

Roller Rig with experimental Bogie for independently rotating Wheels

To develop a new control technology for railway vehicle bogies with independently rotating wheels instead of wheelsets, a test environment was set up in which an experimental 1:5 scale running gear is driven on a roller rig. This allows different sensor and controller concepts for actively influencing the lateral position of a wheel pair with respect to the track center to be analysed and compared in terms of their suitability.

Area of application



Demonstrator for a new type of rail undercarriage to realise ground-level access and minimise wear and tear



Testing of different control and sensor concepts



Maximum operating speed approx. 15 km/h


Technical data


Actuators



Wheel motor

Robodrive ILM115-25

Roller motor

Varicon 65900

Sensors



Encoder

Heidenhain ECN 113 EnDat01

Laser sensors lateral offset

optoNCDT LD1605-50

Laser sensors yaw angle

Allsens AM300-15-CAN

IMUs

BC-3A

Force/torque sensor

FTS-78

Further information



Wheel radius

0,1 m

Roller/rail distance

0, 3 m

Inverter

Solo Guitar ABS 028B

Real-time hardware Simulink Realtime/dSpace
