14. April 2021
DLR measurement campaign on non-stop flight to the Falkland Islands

South At­lantic Anoma­ly does not cause ad­di­tion­al ra­di­a­tion ex­po­sure at flight al­ti­tudes

More:
Aeronautics
Return from the Falkland Islands
Re­turn from the Falk­land Is­lands
Image 1/4, Credit: © Lufthansa

Return from the Falkland Islands

From left: Kai Schen­net­ten, Matthias M. Meier and Mona C. Plet­ten­berg from the DLR In­sti­tute of Aerospace Medicine mea­sured ra­di­a­tion lev­els at an al­ti­tude of 43,000 feet (around 13 kilo­me­tres). On Sat­ur­day, 3 April 2021, the Lufthansa Air­bus A350-900 land­ed back in Ger­many at the air­port in Mu­nich.

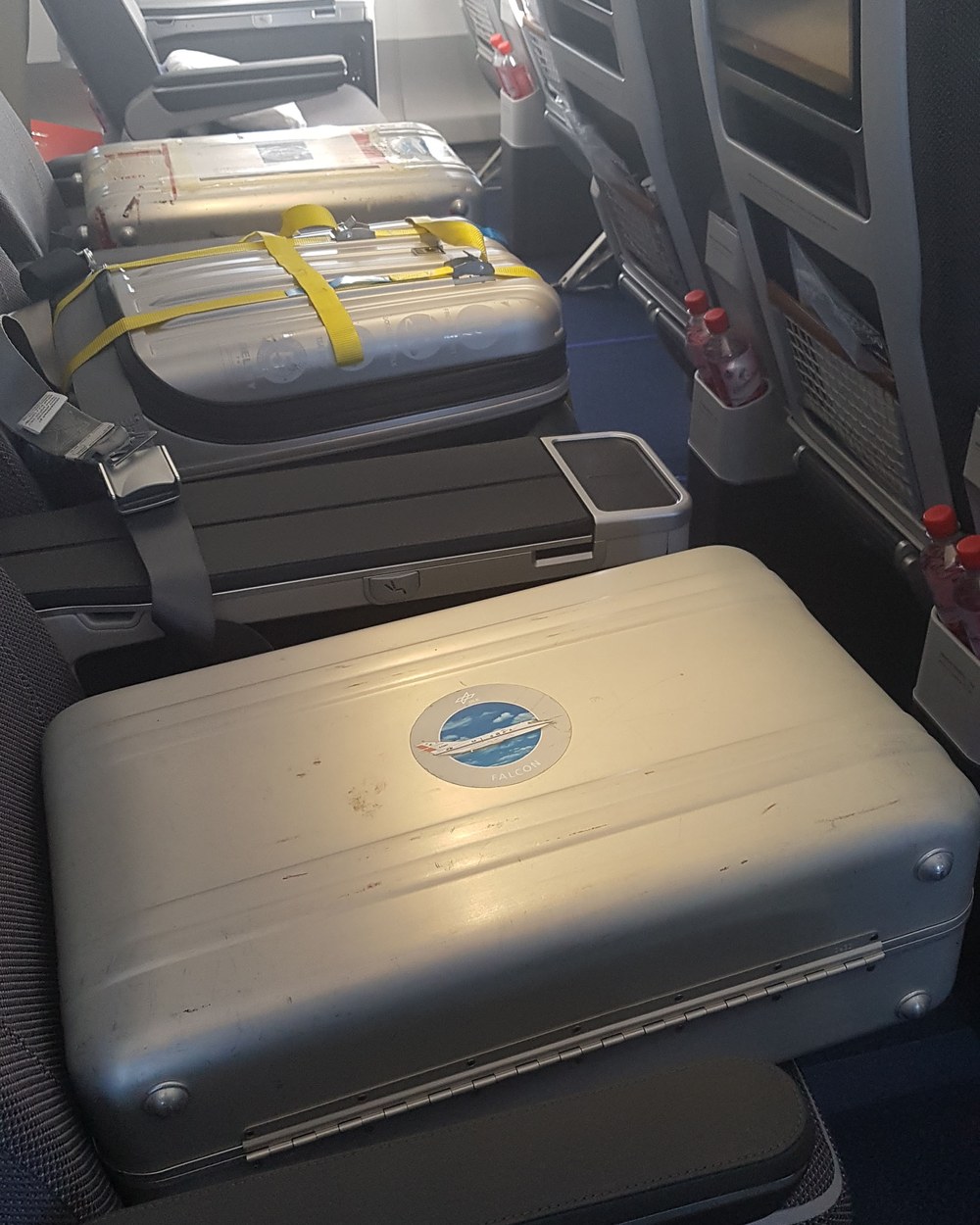

The measuring instruments in row 15 of the aircraft
The mea­sur­ing in­stru­ments in row 15 of the air­craft
Image 2/4, Credit: © DLR. All rights reserved

The measuring instruments in row 15 of the aircraft

The cas­es con­tain­ing the large mea­sure­ment in­stru­ments were at­tached to the seats to min­imise the im­pact on mea­sure­ments ob­tained dur­ing any tur­bu­lence.
Satellite data showing the South Atlantic Anomaly
Satel­lite da­ta show­ing the South At­lantic Anoma­ly
Image 3/4, Credit: © DLR. All rights reserved

Satellite data showing the South Atlantic Anomaly

Da­ta from DLR's Eu:CROPIS satel­lite shows the South At­lantic Anoma­ly at an al­ti­tude of 600 kilo­me­tres (yel­low area). The da­ta were ob­tained with the RAMIS de­tec­tor of the De­part­ment of Ra­di­a­tion Bi­ol­o­gy of the DLR In­sti­tute of Aerospace Medicine. Dur­ing the Eu:CROPIS mis­sion, the RAMIS ra­di­a­tion de­tec­tor was able to col­lect da­ta al­most around the en­tire globe.

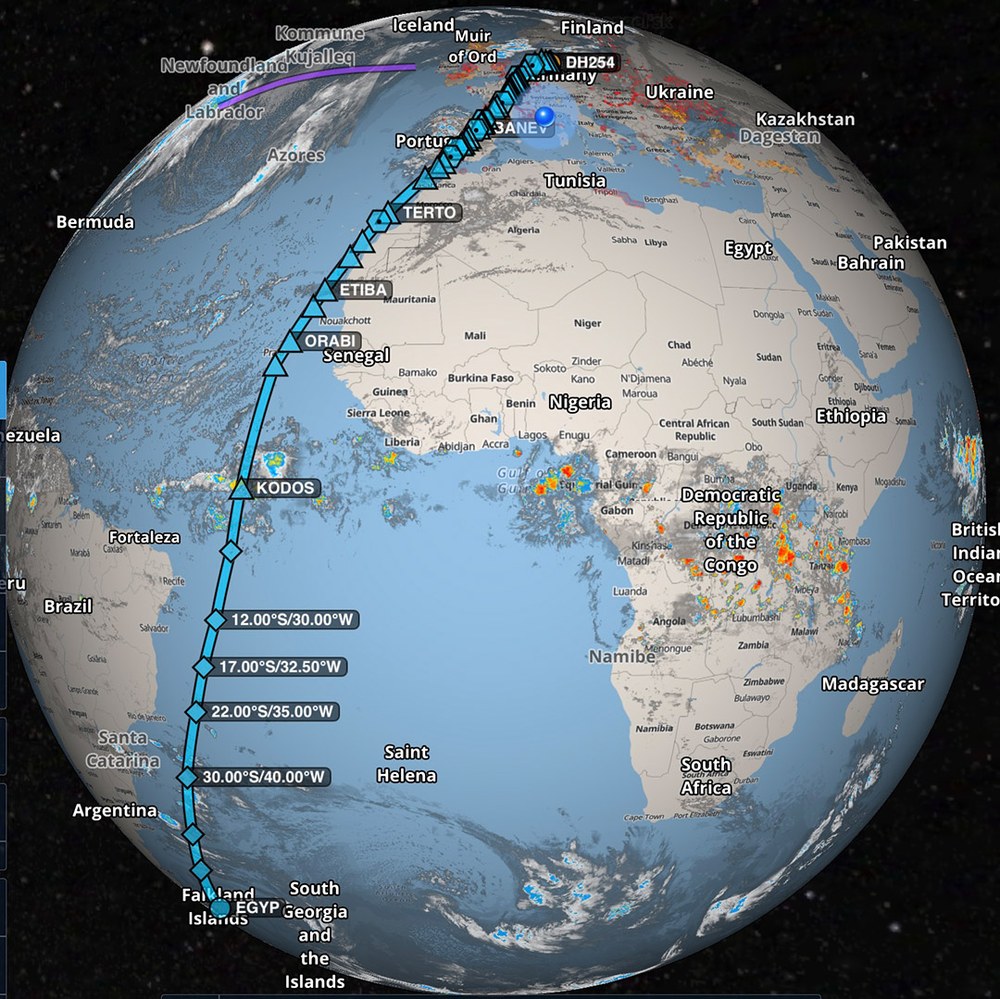

Flight path of LH2574
Flight path of LH2574
Image 4/4, Credit: © Lufthansa

Flight path of LH2574

The flight route for the Lufthansa Air­bus A350-900 flight from Ham­burg to Mount Pleas­ant in the Falk­land Is­lands.
  • Earth's atmosphere protects against the effects of the South Atlantic Anomaly even at an altitude of 13 kilometres.
  • Earth's radiation belt is particularly close to the surface near the coast of Brazil, resulting in stronger cosmic radiation experienced in low-Earth orbit over the region.
  • A DLR research team flew from Hamburg to Mount Pleasant on board a Lufthansa Airbus A350-900.
  • Focus: Aeronautics, medicine

Are aircraft crew and passengers exposed to increased radiation as they fly across the geographical region of the South Atlantic Anomaly (SAA)? Three researchers from the German Aerospace Center (Deutsches Zentrum für Luft- und Raumfahrt; DLR) precisely measured the radiation levels experienced on board a non-stop flight from Hamburg to the Falkland Islands. Their first results are now available: at a cruising altitude of 43,000 feet (just over 13 kilometres), Earth's atmosphere still acts as an effective shield against cosmic radiation below the SAA.

The SAA is located off the coast of Brazil. It is caused by the shift of Earth's magnetic field axis, which does not pass directly through the Earth’s centre. As a result, the inner Van Allen radiation belt in the South Atlantic region extends down particularly close to Earth. This leads to increased radiation levels in near-Earth space – home to the International Space Station (ISS) – in the region. Life on Earth is generally protected from cosmic radiation by both its magnetic field and its atmosphere, but this protective effect decreases with increasing altitude.

Flight through the entire geographical region of the South Atlantic Anomaly

"No additional radiation exposure could be detected for commercial flights travelling through the geographical region of the South Atlantic Anomaly. This has been confirmed by our preliminary analyses," says Matthias M. Meier from the DLR Institute of Aerospace Medicine in Cologne. "At cruising altitudes up to 13 kilometres, the SAA has no impact on radiation exposure under stable space weather conditions." The DLR team was able to verify its own model calculations on board a Lufthansa Airbus A350-900 and add to findings from previous measurement flights. The passenger aircraft traversed the entire geographical region of the SAA at a constant altitude of approximately 13 kilometres. The measuring instruments had their own seats in row 15 of the aircraft. They were installed close to the centre of gravity of the Airbus to reduce the effects of turbulence as much as possible.

Solar wind influences radiation exposure

The results of the measurements are particularly significant due to the currently low influence of space weather generated by the Sun. At the moment, solar activity levels are very low – there are very few sunspots, for example. "Solar activity is the motor driving the solar wind, which has a significant impact on how many energetic particles from the galaxy reach Earth," explains Meier, who leads the institute's Radiation Protection in Aviation Group. On the one hand, this means that the impact of galactic cosmic radiation is comparatively intense at the moment. On the other hand, it means that space weather conditions are very stable, and Earth's magnetic field as well as the radiation belts are not being significantly influenced by the Sun.

The Radiation Measurement In Space (RAMIS) detector on the Eu:CROPIS satellite has been collecting corresponding data from space since December 2018. Using these data, it has been possible to clearly measure the increase in galactic cosmic rays during the period of reduced solar activity. The satellite's orbit takes it over almost the entirety of Earth's surface. This makes it possible to determine how the galactic cosmic radiation varies according to the satellite’s position in orbit and the shielding of Earth's magnetic field.

Lufthansa's Airbus underway on behalf of research

In addition to the DLR team, the Lufthansa flight from Hamburg to Mount Pleasant on 30 March 2021 carried 40 crew members for the research vessel Polarstern. The flight facilitated Polarstern's crew exchange and the return of a team from Neumayer Station III in Antarctica. On 3 April 2021, the Airbus aircraft flew back from the Falkland Islands and landed safely in Munich. Lufthansa’s first non-stop flight of this distance carried scientists from the Alfred Wegener Institute, Helmholtz Centre for Polar and Marine Research (AWI) at the end of January. The AWI operates the Polarstern and Neumayer Station. Before the flight, the research team and the Lufthansa crew spent two weeks in quarantine.

DLR scientist Mona C. Plettenberg reported on her experiences before and during the flight via Instagram (@germanaerospacecenter, Atlantic Kiss) and Twitter (@DLR_de).

Interview with Matthias M. Meier, head of the Radiation Protection in Aviation working group, after returning from the Falkland Islands.

What was the situation on board the aircraft?

We had instruments for recording different components of the radiation field, including a 40-kilogram neutron sensor in a specially padded case. We fixed the cases with the large measurement instruments to the seats so that the measurements would not be distorted by vibrations during turbulence. We then had a relatively quiet flight, which gave us excellent measurement results. We recorded the radiation exposure not only in the geographical region of the South Atlantic Anomaly, but also far beyond it, within the region between 50 degrees north and 50 degrees south – roughly the latitudes of Cologne and the Falkland Islands.

How long did it take to prepare for the campaign?

Our measurements were actually planned for June 2020. We would have used a scheduled flight from Frankfurt to Buenos Aires for this, but that was not possible due to the COVID-19 pandemic. Then, at very short notice, we were given the opportunity to fly on the Lufthansa Airbus that was to be flown on behalf of the Alfred Wegener Institute. This was a unique opportunity for us, as we reached a cruising altitude of 43,000 feet just past the equator.

What is the significance of the measurement results?

Until now, we had model calculations for a flight altitude of 13 kilometres, but no measurement data of our own. The predictions from our cosmic radiation model PANDOCA have now been entirely confirmed for this flight altitude too. Moreover, we were also able to collect extensive data on the radiation field at cruising altitudes, which we are now evaluating.
