Kasei Valles and Sacra Fossae ortho-image
Kasei Valles and Sacra Fossae ortho-image
Mars Express flew over the boundary between Kasei Valles and Sacra Fossae, and the High-Resolution Stereo Camera (HRSC) operated by the German Aerospace Center (Deutsches Zentrum für Luft- und Raumfahrt; DLR) imaged the region, acquiring spectacular views of the chaotic terrain in the area.
The images are centred at 12°N, 285°E and have a ground resolution of about 21 metres per pixel. They cover 225 kilometres by 95 kilometres or 21,375 square kilometres, an area roughly half the size of the Netherlands.

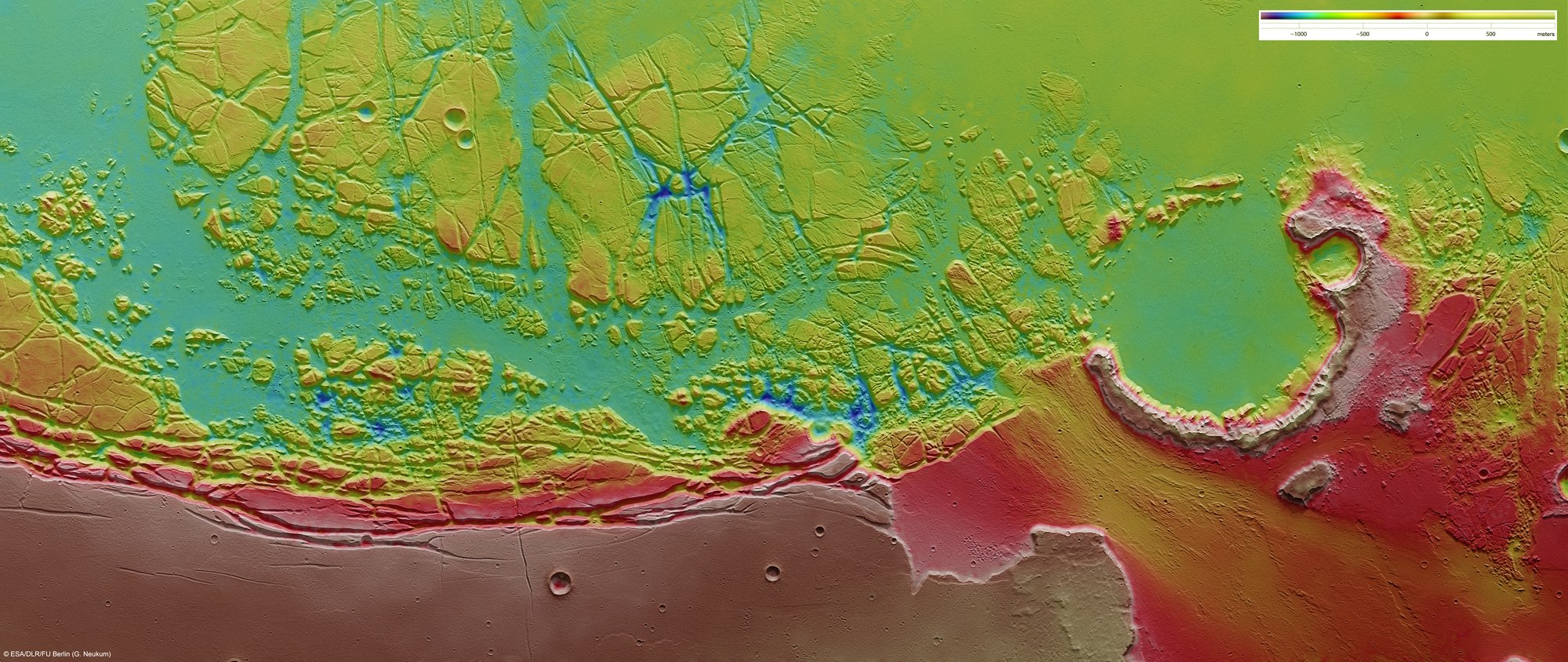

This ortho-image was rectified using elevation data derived from a high-resolution Digital Terrain Model, or DTM (obtained from HRSC data), such that distortions introduced during imaging are corrected. Such an image can be used to derive maps. Elevation data from the DTM has been colour-coded and overlain on the ortho-image so that elevation data and the image itself are displayed in a single scene.
North is to the right in this image. The scale is in metres.
