ONERA and DLR perform Beluga XL ground vibration testing
- DLR and ONERA performed ground vibration testing of new Airbus Beluga XL
- Focus: Aerospace
A joint team from the French aerospace research centre ONERA and the German Aerospace Center (DLR) performed the ground vibration testing (GVT) of the new Airbus Beluga XL large transport aircraft.

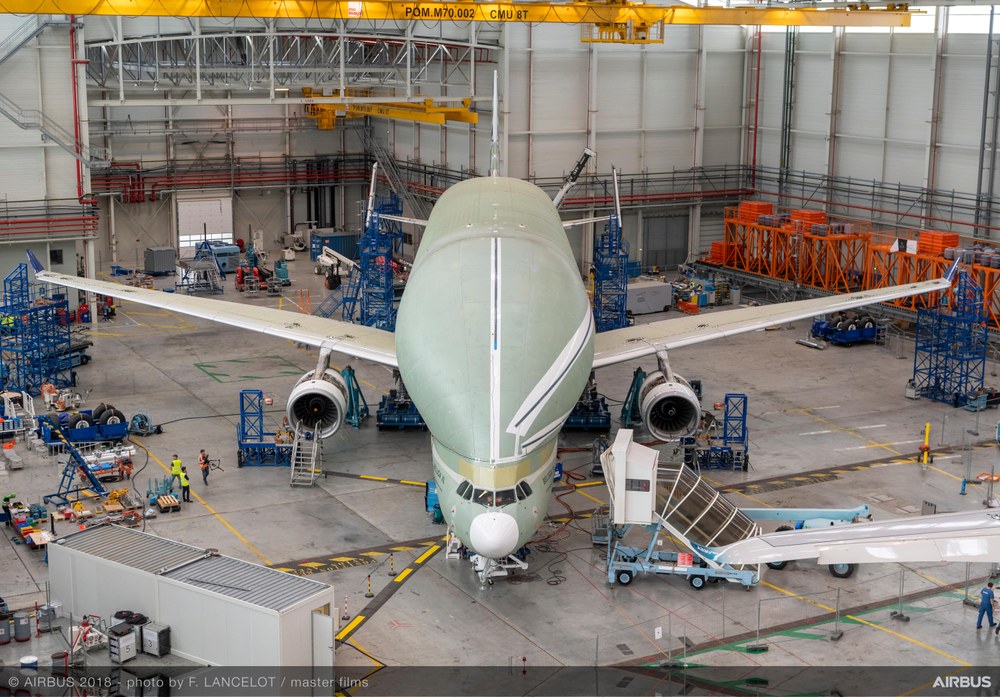

The mission of the new Beluga XL from Airbus is to cope with their production ramp-up and transport more volume. However, before it enters service, much test and certification work has to be done. Together with Airbus, ONERA and DLR have investigated the structural behaviour of the impressive new Airbus transport aircraft in a programme of static ground vibration testing (GVT) that ran for eight testing days up to 6 June. The test provides Airbus with valuable information regarding the behaviour of their aircraft before the first flight takes place – an important step in the certification of a new giant.

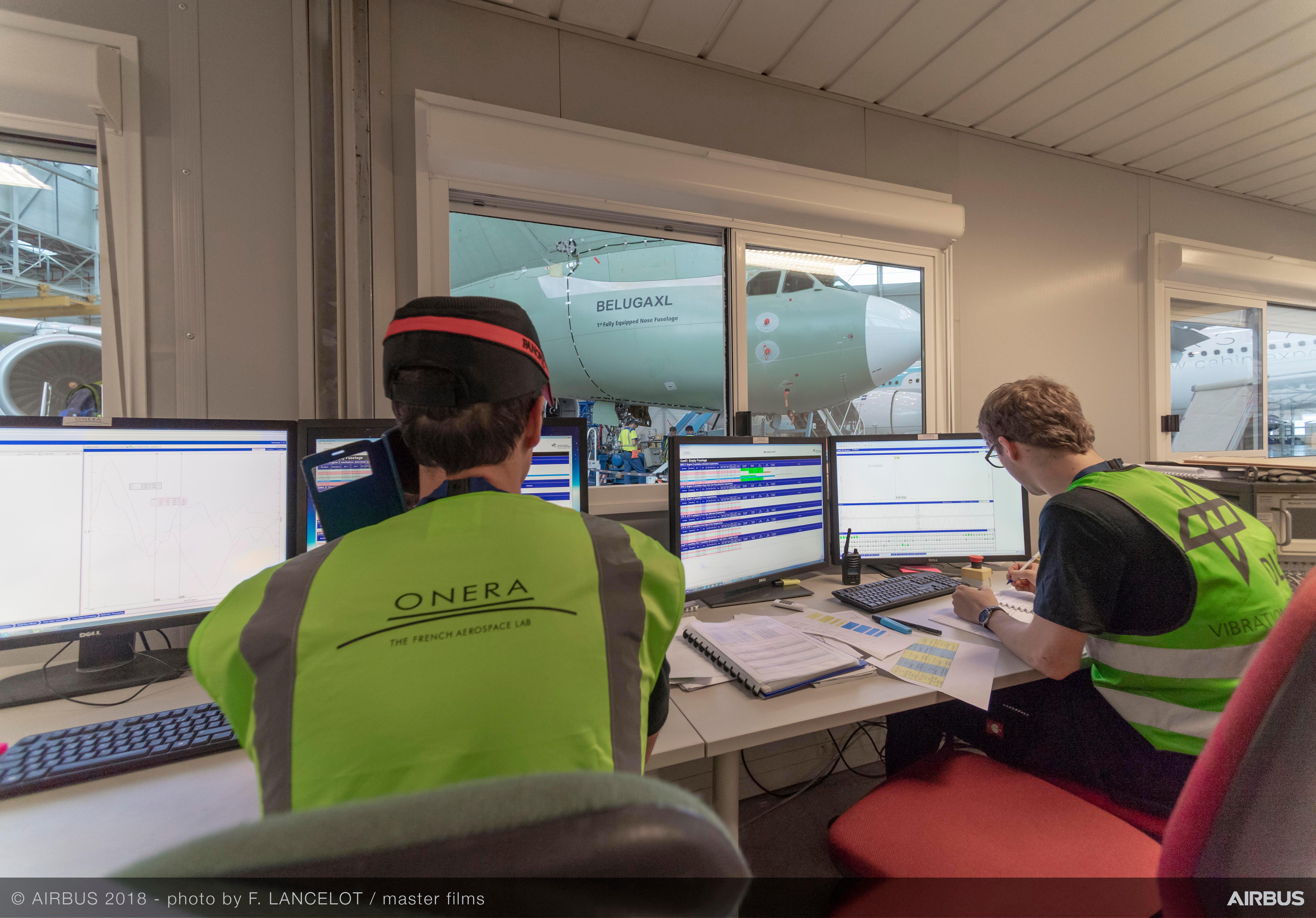

The joint ONERA and DLR team performed the tests very quickly, with high reliability, and efficiently, while providing processed data in near real time. The partner’s expertise was a perfect match to the needs of Airbus. The tests were conducted in compliance with the challenging technical specifications; rapid measurements took only four days for each structural configuration.
Rolf Henke, DLR Executive Board Member for Aeronautics Research, said during the joint visit to the tests in Toulouse: "We at DLR are proud to have a long tradition of performing ground vibration tests together with ONERA, having already done this for 10 Airbus prototypes. We are aware of the great responsibility attached to the confidence that Airbus has in the two research organisations. Test by test, DLR is providing all its expertise. GVT methods and analytics are being continuously improved within DLR’s aeronautics research programme."
On 6 June 2018, Bruno Sainjon, CEO of ONERA, said: "ONERA, teamed with DLR, is proud to bring its unique expertise to Airbus for this crucial step towards certification of a new aircraft. This role is complementary to ONERA's more traditional one of providing the government with expert advice, including the DGAC (French Civil Aviation Authority), where it contributes to improving aircraft safety."
Ground vibration tests are a key part of the overall test programme for every new aircraft, in order to obtain airworthiness certification. The experimental test data provided by GVT are useful to update the mathematical structural model of the aircraft; they are then valuable to predict the vibration amplitudes in operation, and necessary to demonstrate freedom from flutter risks throughout the flight envelope.

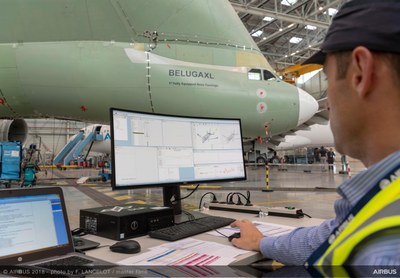

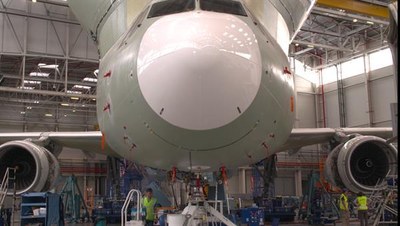

The tests were conducted in two configurations – with an empty fuselage and loaded with a heavy, tuneable payload. More than 600 sensors, 7000 metres of cable and 300 metres of optical fibres were installed on the fuselage, empennage, engines and wings.
The most recent exciter technologies were used to generate vibrations in the aircraft. With their long experience in aircraft GVT, ONERA and DLR have formed a joint team for Airbus GVTs since 1999, notably performing tests for the A320neo, the A350-900 and the A380. With near real time data processing, Airbus receives the results of the tests very quickly.
New Airbus aircraft Beluga XL
The Beluga XL programme was launched in November 2014 to address the additional transport and increased capacity requirements for Airbus beyond 2019. The new oversized air transporters are based on the A330-200 freighter, with extensive re-use of existing components and equipment. The first of five Beluga XLs will fly in summer 2018 and enter service in 2019.
