May 24, 2016

Eu:CROPIS – Greenhouses for the Moon and Mars

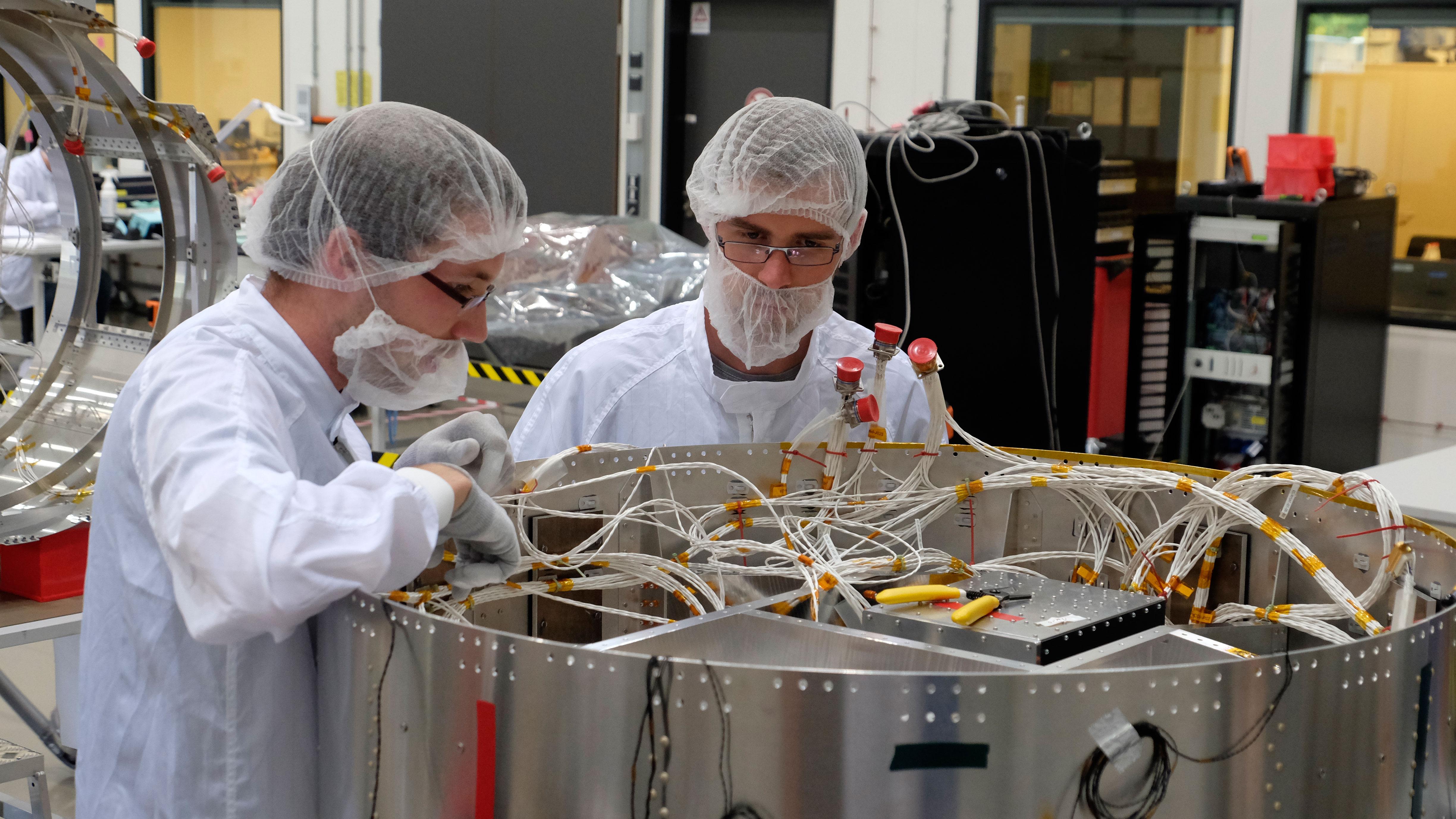

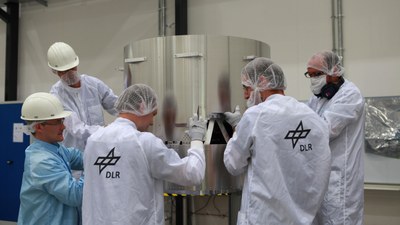

Space missions are a bit like a marathon with checkpoints – only once the first model of a satellite has been successfully tested will construction commence on the actual flight model. The Eu:CROPIS satellite developed by the German Aerospace Center (Deutsches Zentrum für Luft- und Raumfahrt; DLR), which will operate two greenhouses under Martian and lunar conditions, has now reached this milestone – construction of the flight model can now begin. The finish line is already in sight: launched by Space-X, the satellite and its scientific payload will take off for outer space on board the Falcon 9 in the second half of 2017. "We will be constructing the model here at DLR Bremen until spring 2017, and then conduct rigorous flight tests," explains engineer Hartmut Müller, Project Manager for satellite construction at the DLR Institute of Space Systems.

Assisted by microorganisms and euglena

During its mission, the Eu:CROPIS satellite is designed to rotate at an altitude of 600 kilometres, initially replicating lunar gravity for a period of six months before simulating Martian gravity for the next six months. During this period, tomato seeds will germinate and produce small cosmic tomatoes under the watchful eye of 16 cameras. Key helpers that enable this growth will also be transported into space: first, an entire colony of microorganisms inhabiting a trickle filter will convert synthetic urine into easily digestible fertilisers for the tomatoes. Second, the single-cell organism euglena will also be on board to protect the hermetic system from excessive ammonia and to deliver oxygen. LED light will be used to provide the day/night rhythm that the euglena and tomato seed require. A pressure tank will replicate the Earth's atmosphere.

Tomatoes for the astronauts

"Ultimately, we are simulating and testing greenhouses that could be assembled inside a lunar or Martian habitat to provide the crew with a local source of fresh food. The system would do this by managing the controlled conversion of waste into fertiliser," says DLR biologist Jens Hauslage, head of the scientific part of the mission. In a lunar habitat, for instance, the greenhouse would be located in the astronauts' 'home' in a simulated Earth atmosphere. Urine would be one of the waste products the astronauts would produce in abundance. Here, the plants would have to adapt to reduced gravity conditions – the gravitational pull on the Moon is approximately one sixth of what it is on Earth, and on Mars it is around one third.

Turning waste into fertiliser – under controlled conditions

"A compost heap used for recycling purposes would not be controllable on a space station or in a habitat, which is why we use our trickle filter C.R.O.P. It fulfils the same function as normal soil, but is controllable." This is why the lava stones fitted in the trickle filter will initially be 'infected' with dried soil before Eu:CROPIS is sent off on its journey. This inoculation will allow a variety of organisms to settle in the porous, expansive surface of the lava stone, which they will use as a habitat. Once it reaches space, synthetic urine mixed with water will be trickled on the habitat every two to three days, triggering a true competition for food between these microorganisms. Here, nitrite is used to convert the harmful ammonia into nitrate, which is then added to the tomato seeds as fertiliser.

Celestial and earthly applications

Once Eu:CROPIS and its scientific payload have reached space, the first stage will be to activate the greenhouse that will simulate a lunar environment. During this phase, the satellite will be controlled by the DLR control centre in Oberpfaffenhofen (GSOC; German Space Operations Center), while the greenhouse will receive its commands from the DLR control centre in Cologne (MUSC; Microgravity User Support Center). The trickle filter, with its ravenous inhabitants, will be operated by the DLR Institute of Aerospace Medicine, and the Friedrich-Alexander-Universität of Erlangen-Nürnberg will contribute the euglena. The second greenhouse with Martian gravity will be activated six months later: by then, the microorganisms, tomato seeds and euglena will have been exposed to cosmic radiation for six months – the equivalent to a flight to Mars. The DLR Institute of Aerospace Medicine will measure the radiation exposure inside and outside the satellite throughout the entire mission.

"We are using Eu:CROPIS to space test technology for use in habitats on other celestial bodies, but it could be installed just as well in a terrestrial setting," Hauslage. For instance, trickle filters can be fitted to make manure more effective and less odorous. Recycling urine in conurbations, for instance in greenhouses installed in high-rise buildings (vertical farms), would be another possible use.
