Infographic: Relationship between speed and altitude for vertical and horizontal landing systems
Infographic: Relationship between speed and altitude for vertical and horizontal landing systems

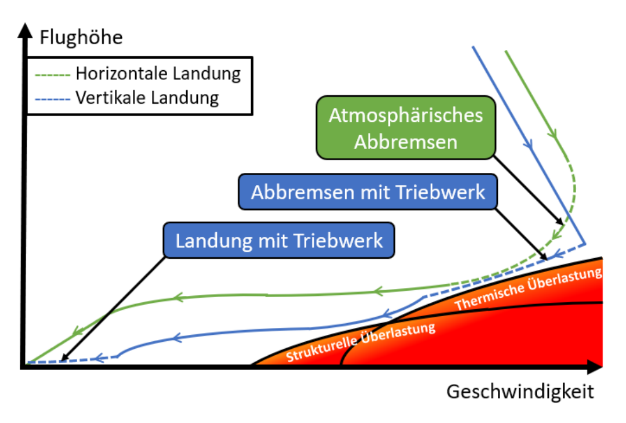

In the horizontal 'fly-back' approach, the wings of the rocket stage continuously reduce its speed, starting at an altitude of about 60 kilometres (green). In the case of the vertically-entering rocket (blue), engines trigger deceleration in a targeted manner at a similar altitude, which can be seen as an abrupt change in speed in the diagram.
