Schlieren image of the separation process for a four-part booster at Mach 1.8
Schlieren image of the separation process for a four-part booster at Mach 1.8

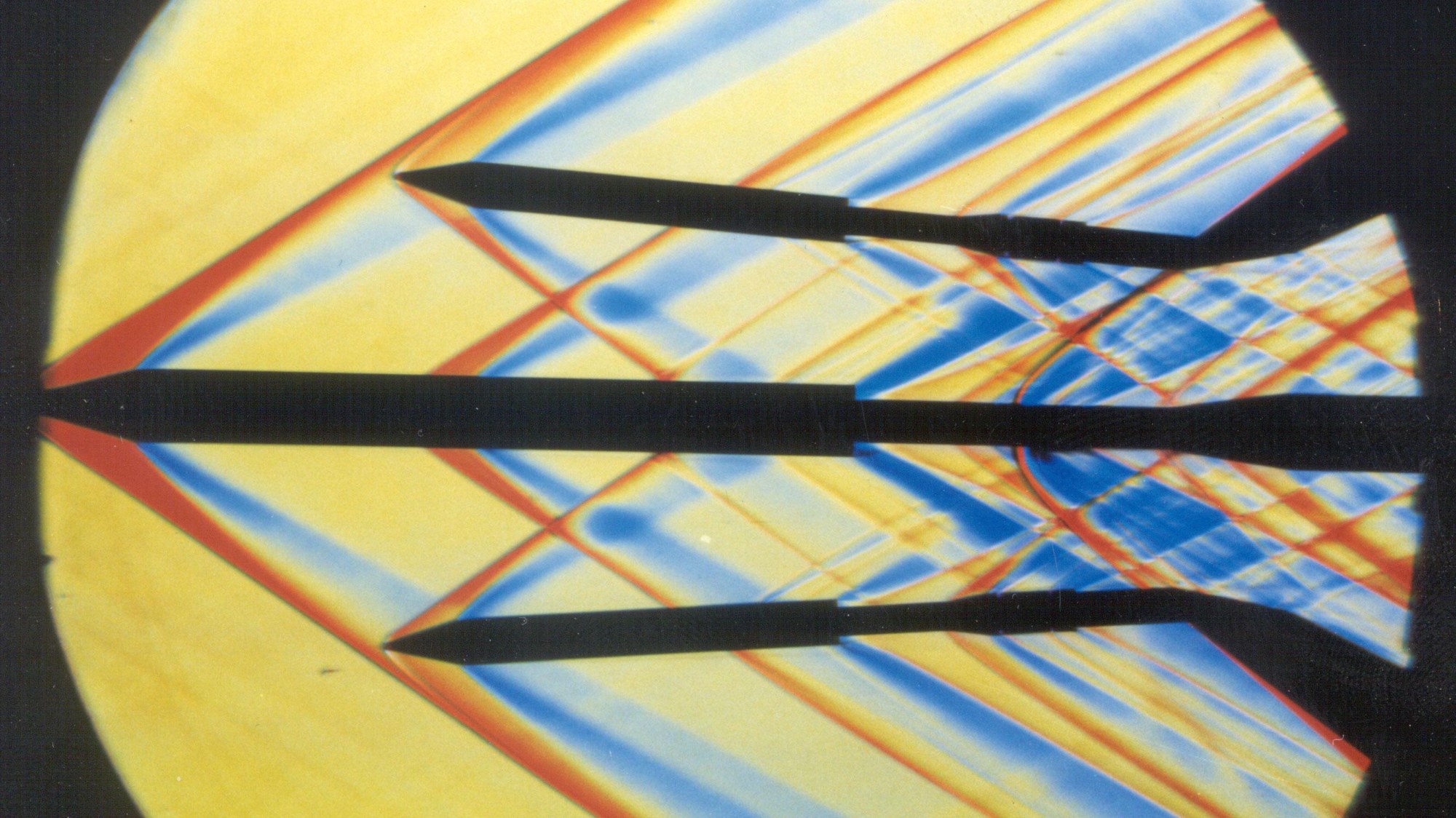

Flow visualisation during booster separation for a generic launch vehicle configuration using colour schlieren imaging, which shows the density gradients in the area of the compression shocks as colour gradients.
