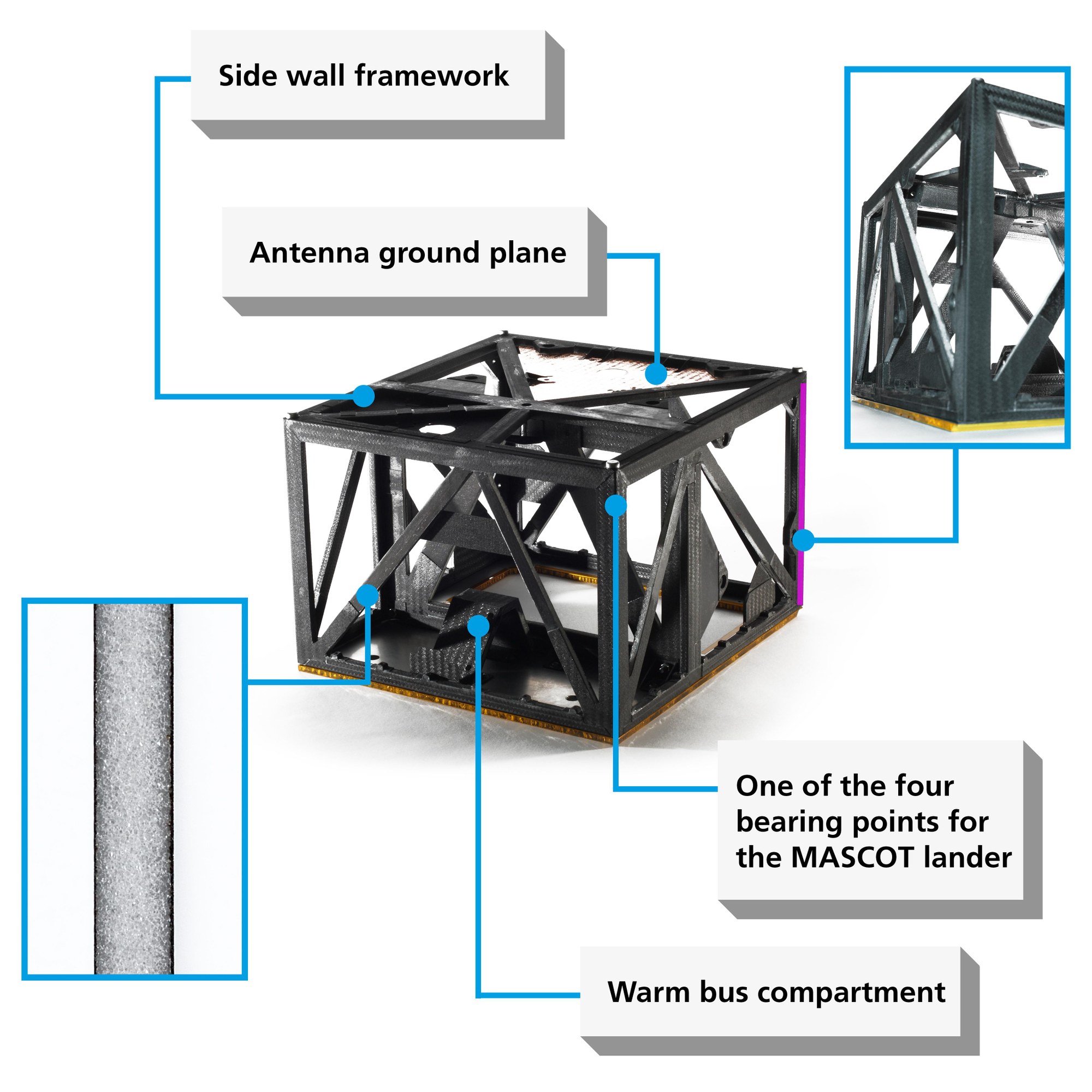

Figure 3: Fibre composite structure of the MASCOT lander unit with electrically conductive antenna ground plane made of coated CFRP (see details in Figure 10).
Figure 3: Fibre composite structure of the MASCOT lander unit with electrically conductive antenna ground plane made of coated CFRP (see details in Figure 10).
The line of vision is oriented towards the warm bus compartment of the lander,where the scientific instruments are to be installed. Right: One of the L-shaped angle profiles made of CFRP fabric for joining the framework side walls is marked in yellow. Left: Cross-section of a sandwich-designed framework truss consisting of a 5 millimetre foam core and two 0.125 millimetre-thick CFRP face sheet plies glued onto the sides.
